SKU: MTyphoonF4FC-1

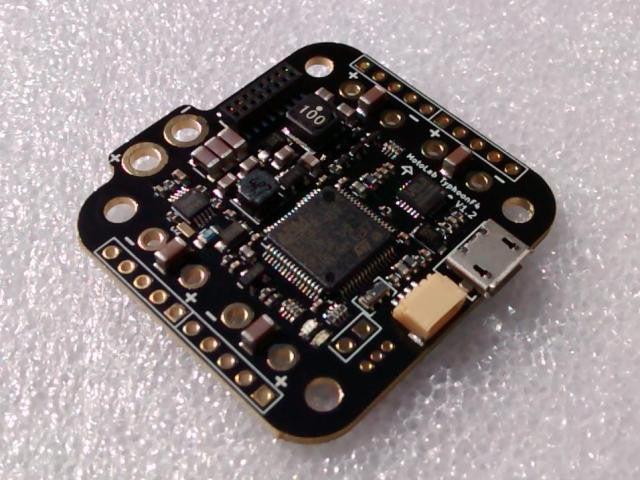

Typhoon F4 Flight Controller (This version does not have reset issues):
168MHz STM32F4 version of Tempest with motor current sensor
MPU6000 gyro/acc on SPI bus
Up to 4 serial ports plus USB
Up to 6 Dshot motor outputs
Serial inverters for SBUS and S.PORT
1.5A 5V regulator with LC filtered 5V for VTX and camera
Plug-in connection to VTX board
38x40mm board size with 30.5mm mounting hole spacing
The Typhoon F4 is compatible with Betaflight using the new MOTOLABF4 board target.
The VTX board mates directly with the F4 controller board with no external wiring between the two.
The F4 board mates directly with the VTX board with no external wiring between the two.
Typhoon VTX:
25/200/500mW switchable, 40-ch video transmitter
Betaflight OSD
MicroSD slot for Blackbox
Direct plug-in connection to camera and antenna with available custom cables
Pass-through connector for camera joystick
38x38mm board with 30.5mm mounting hole spacing
The Typhoon VTX is a self-contained video system, operating on filtered 5V provided by the Typhoon F4. The video is isolated from the PDB power distribution and delivers cleaner video.
The VTX board mates directly with the F4 controller board with no external wiring between the two.
Note: The VTX board is not powered from the USB input. The board should NOT be powered from lipo without an antenna connected.
