FVT LittleBee-Spring Dshot Blheli_S BB2 ESC (40A / 4 in 1 20A or 30A with 5V 12V BEC / 4 in 1 10A without BEC)
$17.00
SKU: LBSpring10A4in1

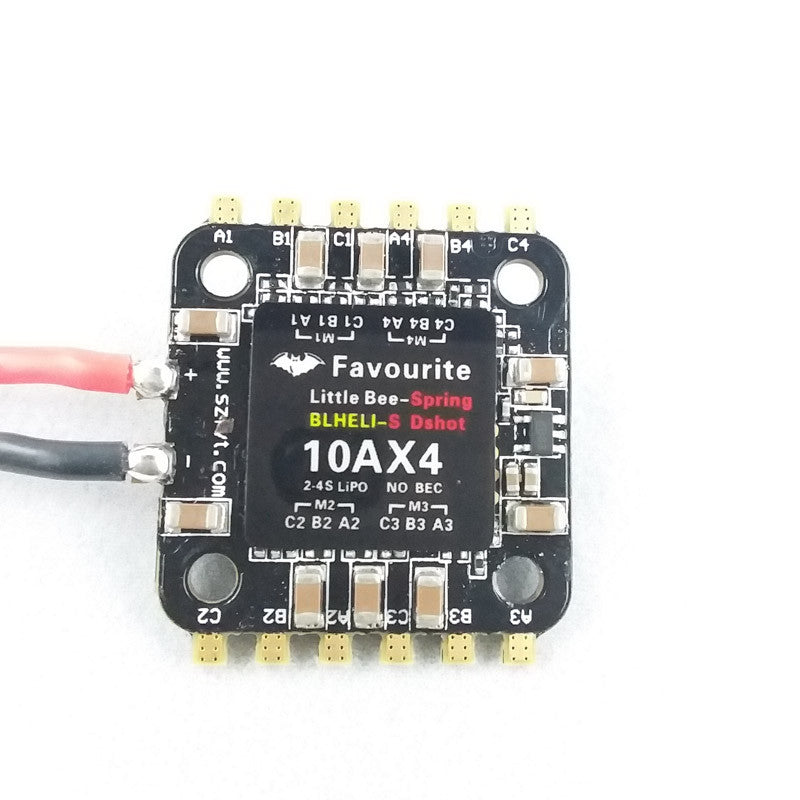

LittleBee-Spring DShot Blheli_S 2-4S 4 in 1 10A ESC
Technical Specifications
- Input Voltage: 2-4S Lipo
- BEC Output: NO.
- Continue Current: 10A
- Burst Current: 15A up to 10S
- Size: 27mm*31mm, M3
- Support Oneshot125, Oneshot42, Mutishot and Dshot etc.
- Weight: 6g
- Support: Oneshot125, Oneshot42, Mutishot and Dshot150/300/600
- Main IC: EFM8BB21F16F, MCU run 48MHz
- MOS: ALL Dual N FET, best Mos at present, Switch very fast
- BLHeli_S Bootloader & Firmware

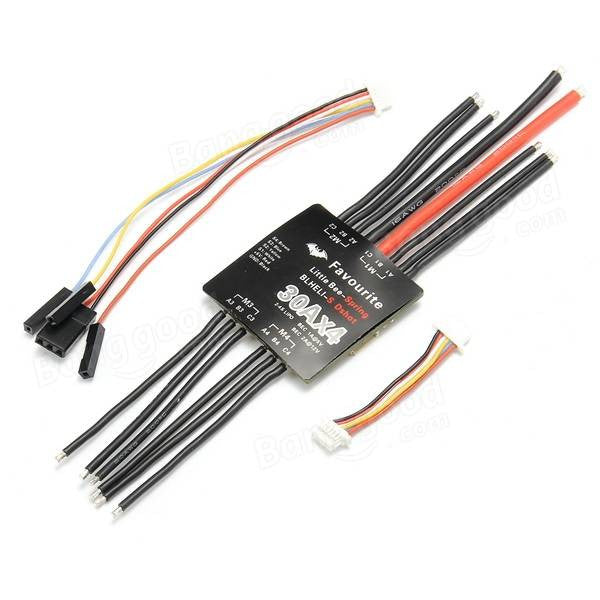

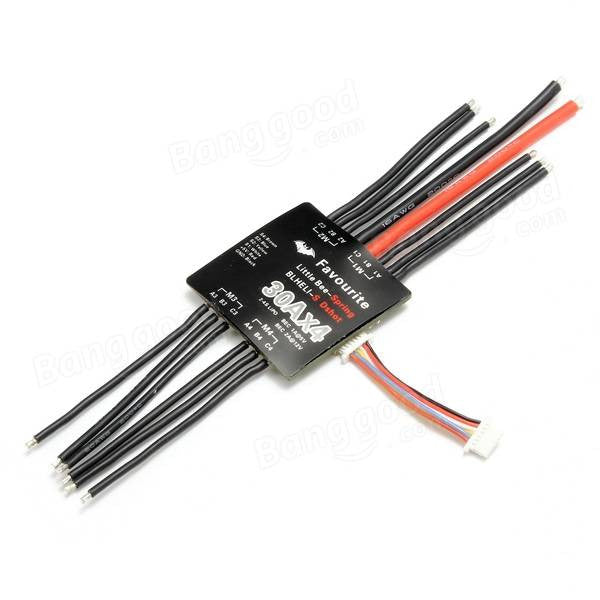

LittleBee-Spring DShot Blheli_S 2-4S 4 in 1 30A ESC with BEC
Technical Specifications
- Input Voltage: 2-4S Lipo
- BEC Output: 5V@1A and 12V @2A
- Continue Current: 30A
- Burst Current: 35A up to 10S
- Size: 36*36, M3(30.5*30.5MM)Weight: 20g(include Wire)
- Support Oneshot125, Oneshot42, Multishot and D-Shot Ready

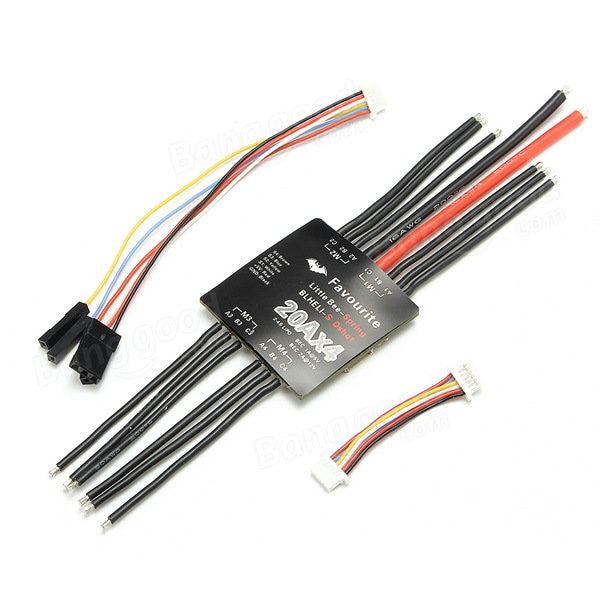

LittleBee-Spring DShot Blheli_S 2-4S 4 in 1 20A ESC with BEC
Technical Specifications
- Input Voltage: 2-4S Lipo
- BEC Output: 5V@1A and 12V @2A
- Continue Current: 20A
- Burst Current: 25A up to 10S
- Size: 36*36, M3(30.5*30.5MM)
- Support Oneshot125, Oneshot42, Mutishot and Dshot etc.
- Weight: 20g(include Wire)

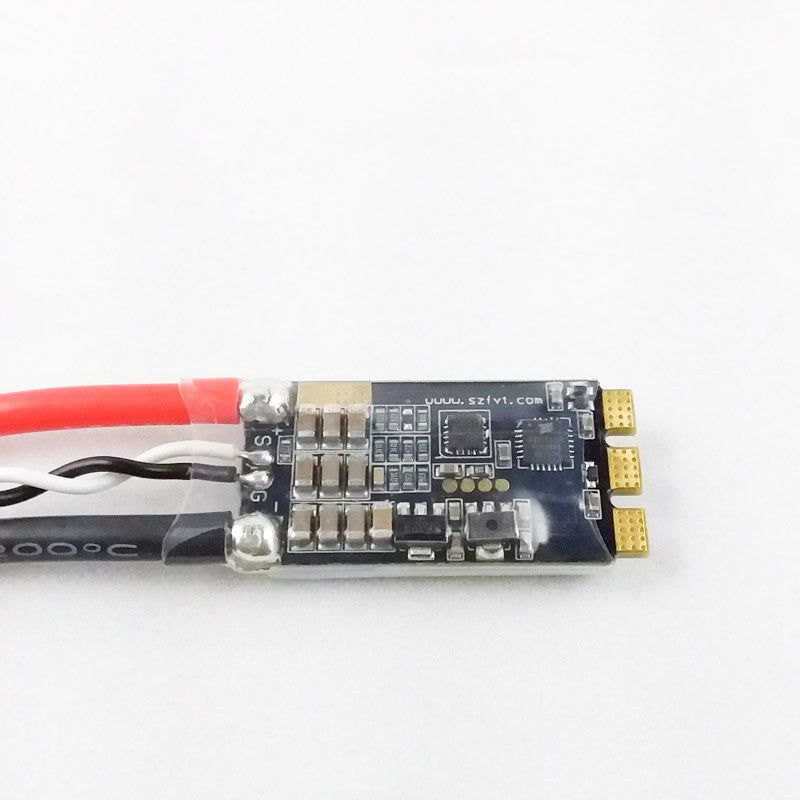

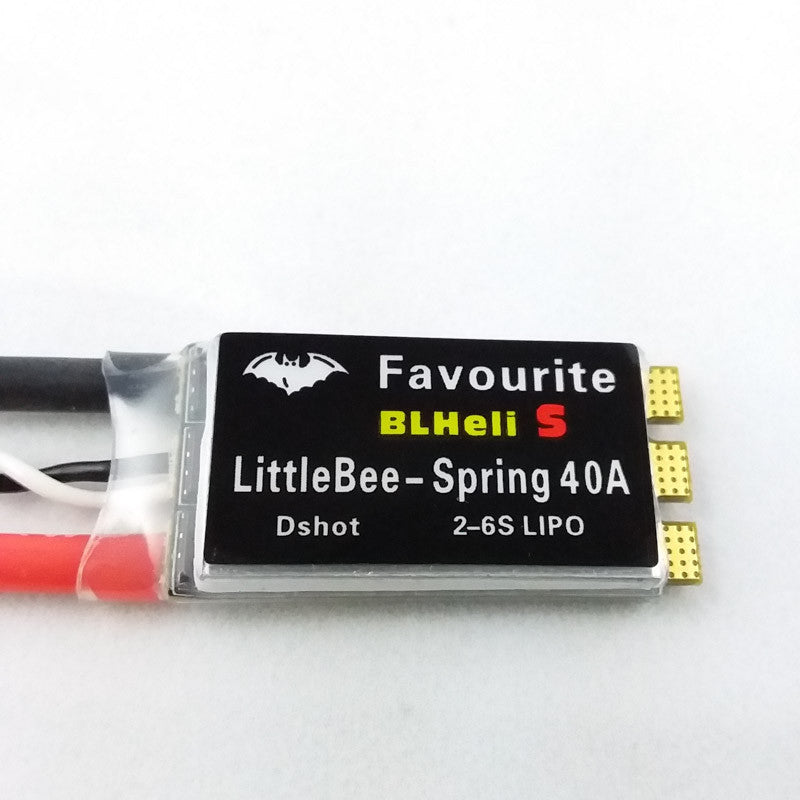

LittleBee-Spring DShot Blheli_S 2-6S 40A ESC
Technical Specifications
- Input Voltage: 2-6S Lipo
- BEC Output: No
- Continue Current: 40A, Burst Current: 40A up to 10S
- Size: 35*17mm.
- Support Oneshot125, Oneshot42, Mutishot and Dshot etc.
- Main IC: SILABS EFM8BB21F16 ,MCU run 48MHz
